Available on backorder

Add to cart for a detailed quotation

Brand:

Type:

Mobile:

Purpose:

Max KW:

Max A:

Number of phases:

Connector:

RFID:

Load management:

Mounting:

Fixed cable:

Dimensions:

Weight:

Kempower

DC Fastcharger, AC Charger

No

Semi Public, Public

200

3 x 32

3

Type 2 Connector, CCS2, CHAdeMO

Yes

Yes

Concrete plinth

Yes

300 x 1500 x 300mm

67

kg

Brand:

Kempower

Type:

DC Fastcharger, AC Charger

Mobile:

No

Purpose:

Semi Public, Public

Max KW:

200

Max A:

3 x 32

Number of phases:

3

Connector:

Type 2 Connector, CCS2, CHAdeMO

RFID:

Yes

Load management:

Yes

Mounting:

Concrete plinth

Fixed cable:

Yes

Dimensions:

300 x 1500 x 300mm

Weight:

67

kg

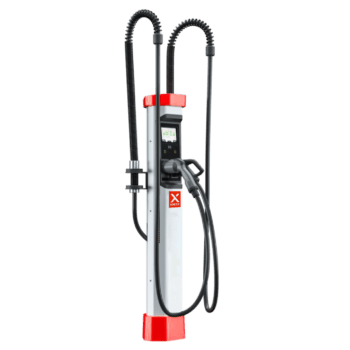

Product description

Inspiring user experience

There are seven variations of S-Series charging satellites, equipped with one or two charging outputs each. One satellite charging system can consist of up to 4 double or 8 single satellites, in total 8 charging outputs.

The power to Satellites is supplied by C-Series Charging Power Unit (CPU), providing a maximum power of up to 200/400/600 kW, depending of the CPU version and cable sizing.

S-Series fits locations where a heavy-duty usage, and a high number of charging outputs are needed, such as gas stations, shopping malls, distribution centers, parking areas and bus depots.

S-Series charging satellites are built with an advanced cable support system (pat. pend.), to provide premium user experience

Intuitive user menu on a 7” touch screen makes the charging process smooth, and
easy to follow, also on a mobile phone

S-Series Charging Satellites enable flexibility on designing the charging system topology

Connected services provide remote connectivity with diagnostics and maintenance tools

AC power connection: 3 PH
Nominal Input current: 3 x 32A
Input Frequency: 50 – 60 Hz
INPUT –
Maximum output power: 200 kW
Maximum output current: –
Output voltage range: –
OUTPUT –
DC connection standard: CCS, CHAdeMO, Type 2
DC cable length: –
Connection: Combo2, Chademo, Type 2
Protection: IP54, IK10
Operational noise level: < 60 dB
Operation temperature: -35°C to +55°C
Humidity: < 95% relative humidity
Cooling: –
Dimensions: ca. DxWxH zie tabel
Weight: 67 tot 112 kg
Electrical safety: IEC 61851-1, IEC61851-23, IEC 61851-21-2
User Interface: 7” Touch screen display, connectivity to ChargEye cloud-based back-end service and management dashboard, charging status indication LEDs, advanced cable supportsystem, RFID ISO14443A reader
