PRO 1 (Wired)

Add to cart for a detailed quotation

Brand:

Type:

Mobile:

Purpose:

Max KW:

Max A:

Number of phases:

Connector:

RFID:

Load management:

Mounting:

Fixed cable:

Dimensions:

Weight:

Alfen

AC Charger

No

Private, Semi-Public, Public

7.4

32

1

Type 2 Connector

Yes

Yes

Wall brace, Collumn

Yes

590 x 338 x 230 mm

23

kg

Brand:

Alfen

Type:

AC Charger

Mobile:

No

Purpose:

Private, Semi-Public, Public

Max KW:

7.4

Max A:

32

Number of phases:

1

Connector:

Type 2 Connector

RFID:

Yes

Load management:

Yes

Mounting:

Wall brace, Collumn

Fixed cable:

Yes

Dimensions:

590 x 338 x 230 mm

Weight:

23

kg

Product description

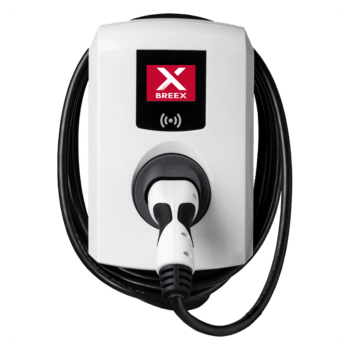

With a compact design without compromising on smart features, BREEX PRO 1 is suitable for business use and can be wall or pole mounted. The user interface features a color screen. An integrated RFID reader supports user identification and a MID meter enables financial settlement. Internet connection via GPRS/ethernet with data available through freely chosen third-party management systems.

Easy access
Allow multiple users access via both RFID cards and the BREEX X-Charge app. (optional)

Mobile Connectivity
Enables your BREEX Smartcharger to communicate with your BREEX X-Charge charge management platform using 3G or 4G networks. For updated and synchronized data in real time.

BREEXwarranty and maintenance
Guaranteed warranty throughout your entire agreement. So you can fully enjoy your BREEX Smartcharger without worrying about anything.

Number of Phases: 1PH
Colour: White
Max KW: 7.4 KW (AC)
Connector Type: iEC 62196-2 Type 1 or Type 2 Connector
Cable Lenght: 5 m / 7 m
Cable Diameter: 5 x 6 mm
RFID: Yes
Load Balancing: Yes
Lock: Yes
Energy Meter: Yes (integrated)
Energy Meter (MID): Yes
Load Schedule: Yes
DC Leakage: (RCM) DC 6 mA
Connectivity: Ethernet, 4G (dongle)
Charge mode: IEC 61851-1 Mode 3
Power Boost: Optional
Power Sharing: Primary/Secondary
Output Configuration: 6A to 32A
Frequency: 50 Hz /60 Hz
Dimensions (H x L x W): 590 x 338 x 230mm
Weight: (excl. Cable) 23 kg
