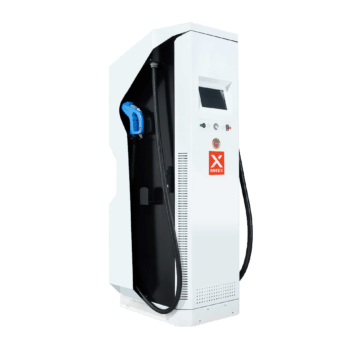

FC 150/180 DC Fastcharger

Name: FC 150/180 DC Fastcharger - SMARTCHARGERS
Price: 1.00 EUR
Availability: InStock

Available on backorder

Add to cart for a detailed quotation

Brand:

Type:

Mobile:

Purpose:

Max KW:

Max A:

Number of phases:

Connector:

RFID:

Load management:

Mounting:

Fixed cable:

Dimensions:

Weight:

Starcharge

DC Fastcharger

Nee

Semi Public, Public

180 3 x 225A

3 CCS2, CHAdeMO

Yes

Concrete plinth

Ja

1802 x 730 x 750 mm

465 kg

Brand:

Starcharge

Type:

DC Fastcharger

Mobile:

Nee

Purpose:

Semi Public, Public

Max KW:

180 Max A:

3 x 225A

Number of phases:

3 Connector:

CCS2, CHAdeMO

RFID:

Yes

Load management:

Yes

Mounting:

Concrete plinth

Fixed cable:

Ja

Dimensions:

1802 x 730 x 750 mm

Weight:

465 kg

Product description

BREEX Fastchargers (FC) can be used for all types of electric vehicles with a CHAdeMO or CCS connection. These chargers have a DC power between 15kW to a maximum of 180kW. The actual charging capacity depends on the power available. Get advice from your BREEX representative if you don’t know your charging capacity.

Our FC-120, FC-150 and FC-180 are ideal for Charge Point Operators looking for a charging station suitable for intensive use. It is extremely weatherproof and solid, allowing for extreme and prolonged use.

FOR EVs

If you have an all-electric vehicle, DC charging is essential. Thanks to our fast chargers, you can fully enjoy your electric vehicle. Thanks to our fast chargers, you can get the most out of your electric vehicle.

FULL-SERVICE

Choose a full-service agreement and we’ll provide all the necessary maintenance and ensure your business continuity.

CCS OF CHAdeMO

Our charging stations are available with a CCS and/or CHAdeMO connection.

More specifications

Number of Phases: 3PH
Colour: White / Red
Max KW: 150-180 KW (DC)
Connector Type: iEC 62196-2 1 CCS en 1 CHAdeMO
Cable Length: 2 x 3m
Cable Diameter: 50 mm2
RFID: Yes
Lock: Yes
Energy Meter: Yes (geïntegreerd)
Energy Meter (MID): Yes
Charge Schedule: Yes
DC Leakage (RCM): DC 6 mA TYPE 2
Connectivity: Ethernet / GPRS-UMTS (3G)
Charge Mode: IEC 61851-23/24 Mode 4
Load Balancing: Yes
Dynamic Load balancing: Optional
Power Output: 0~250A
Frequency: 50 Hz
Dimensions (H x L x W): 1802 x 730 x 750 mm
Weight: (excl. Cabel) 465 kg
