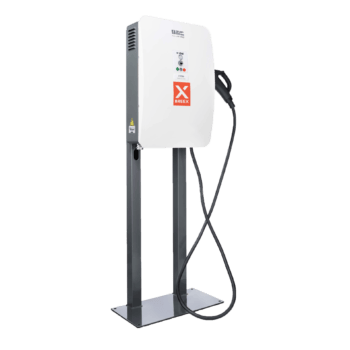

FC 15/30 DC Fastcharger

Available on backorder

Add to cart for a detailed quotation

Brand:

Type:

Mobile:

Purpose:

Max KW:

Max A:

Number of phases:

Connector:

RFID:

Load management:

Mounting:

Fixed cable:

Dimensions:

Weight:

Ecotap

DC Fastcharger

No

Private, Semi-Public, Public

30

3 x 50

3

CCS2, CHAdeMO

Yes

Yes

Wall brace, Collumn

Yes

710 x 480 x 225m

57

kg

Brand:

Ecotap

Type:

DC Fastcharger

Mobile:

No

Purpose:

Private, Semi-Public, Public

Max KW:

30

Max A:

3 x 50

Number of phases:

3

Connector:

CCS2, CHAdeMO

RFID:

Yes

Load management:

Yes

Mounting:

Wall brace, Collumn

Fixed cable:

Yes

Dimensions:

710 x 480 x 225m

Weight:

57

kg

Product description

BREEX Fastchargers (FC) can be used for all types of electric vehicles with a CHAdeMO or CCS connection. These chargers have a DC power between 15kW to a maximum of 180kW. The actual charging capacity depends on the power available. Get advice from your BREEX representative if you don’t know your charging capacity.

FOR EVs

If you have an all-electric vehicle, DC charging is essential. Thanks to our fast chargers, you can fully enjoy your electric vehicle. Thanks to our fast chargers, you can get the most out of your electric vehicle.

FULL-SERVICE

Choose a full-service agreement and we’ll provide all the necessary maintenance and ensure your business continuity.

CCS OF CHAdeMO

Our charging stations are available with a CCS and/or CHAdeMO connection.

Number of Phases: 3PH
Colour: White/Red
Max KW: 30 KW (DC)
Connector Type: iEC 62196-2 1 CCS en 1 CHAdeMO
Cable Length: 3m
Cable Diameter: 16 mm2
RFID: Yes
Lock: Yes
Energy Meter: Yes (geïntegreerd)
Energy Meter (MID): Yes
Charge Schedule: Yes
DC Leakage (RCM): DC 6 mA TYPE 2
Connectivity: Ethernet / GPRS-UMTS (3G)
Charge Mode: IEC 61851-23/24 Mode 4
Load Balancing: Yes
Dynamic Load balancing: Optional
Power Output: 0~80A
Frequency: 50 Hz
Dimensions (H x L x W): 710 x 480 x 225 mm
Weight: (excl. Cabel) 57 kg
