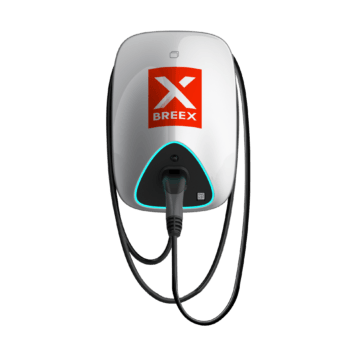

Aurora 7 (Wired)

Name: Aurora 7 (Wired) - SMARTCHARGERS
Price: 1.00 EUR
Availability: InStock

Add to cart for a detailed quotation

Brand:

Type:

Mobile:

Purpose:

Max KW:

Max A:

Number of phases:

Connector:

RFID:

Load management:

Mounting:

Fixed cable:

Dimensions:

Weight:

Starcharge

AC Charger

No

Private, Semi-public, Public

7,4

16

1 Type 2 Connector

Yes

Wallbrace, Collumn

Yes

282 x 409 x 148 mm

4.5 kg

Brand:

Starcharge

Type:

AC Charger

Mobile:

No

Purpose:

Private, Semi-public, Public

Max KW:

7,4

Max A:

16 Number of phases:

1 Connector:

Type 2 Connector

RFID:

Yes

Load management:

Yes

Mounting:

Wallbrace, Collumn

Fixed cable:

Yes

Dimensions:

282 x 409 x 148 mm

Weight:

4.5 kg

Product description

The Aurora is one of the best private charging solutions available today. Configurable with or without cable and up to 11 KW of power. Winner of the international industrial design competition iF Design Award 2021.

More specifications

Model Name: Aurora 7 (Wired)
Input Waarden: 230 Vac +-10%, 45-65Hz, monophase
Number of Phases/Cables: L+N+PE
Internal RCD: DC 6mA+type A AC 30mA
Power: 7.4 kW max.
Output: 16A max.
Charging Interface: IEC 62196-2 Type 2 Connector
Status Indicators: RGB Led
Buttons: Emergency Button
Card Reader: ISO/IEC 14443 A/B Mifare RFID reader
Network Interface: 4G, Ethernet (optioneel), Wi-Fi (optioneel), Bluetooth (optional)
Charging Protocol: OCPP1.6J
Operating Temperature: -30° -> 50°C
Storage Temperature: – 40° -> 70°C
Humidity: 5% – 95% no condensation
Protection: IP54, IK10
Cooling: Naturally Aspired
Dimentions (WxHxL): 282 x 409 x 148 mm
Weight: 4.5 kg
Connectors: Case B Connector
Installation: Wallbrace, collumn
